9238 Square Fan

9238 Square Fan

The 9238 Square Cooling Fan has significant advantages. 92 x 92mm square construction, suitable for a variety of equipment space, easy to install.

  • Facebook : facebookfacebook

  • Whatsapp : whatsappwhatsapp

Product Introduction

With a thickness of 38mm, the 9238 provides strong wind power in limited space, with an airflow of up to 35.92 - 187.47CFM for efficient heat dissipation. The operating noise is as low as 27dB(A), which is quiet and non-intrusive. It is durable and can provide stable service and escort for the efficient operation of the equipment.

Product Application

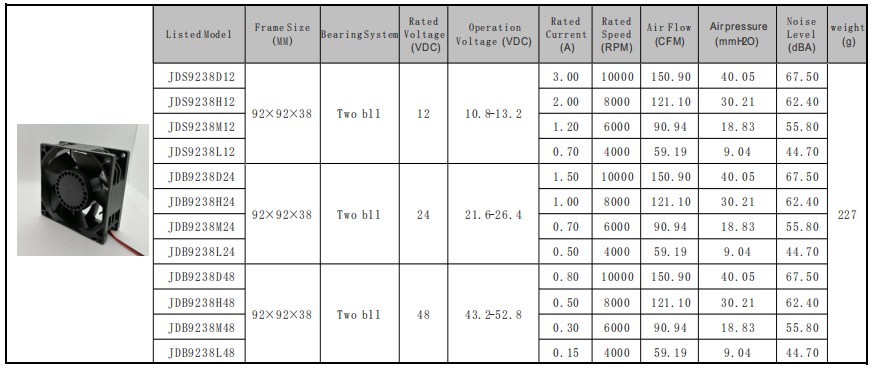

Product model

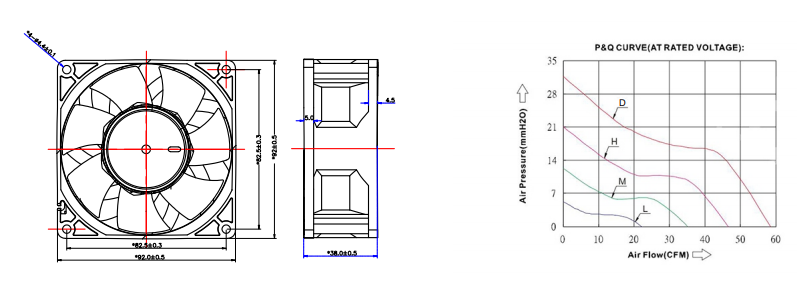

92*92*38mm

Product size

92*92*38mm

92*92*38mm


Product characteristics

Large air volume - efficient heat dissipation, rapid cooling.

Low noise - optimized blade design, quiet operation.

Stable and durable - high quality bearings, long life.

Strong compatibility - square design, adaptable to a variety of equipment.

Energy saving and power saving - high efficiency motor, low power consumption.

Free Consultation

Answer your question

frequently asked questions

  • How to choose the right cooling fan?

    When selecting a cooling fan, several factors need to be considered: airflow, static pressure, noise level, size, power consumption, and operating environment. Airflow and static pressure are key indicators of ...more

  • How does a cooling fan work?

    A cooling fan operates by using a motor to drive the rotation of blades, generating airflow that accelerates the movement of air and removes heat from heat sinks or radiators. The speed of the fan and the desig...more

  • Does the installation direction of a cooling fan affect its cooling performance?

    Does the installation direction of a cooling fan affect its cooling performance?

    Yes, the installation direction of a cooling fan significantly affects its cooling performance. Typically, a fan can be installed on the intake or exhaust side of a heat sink. When installed on the intake side,...more
