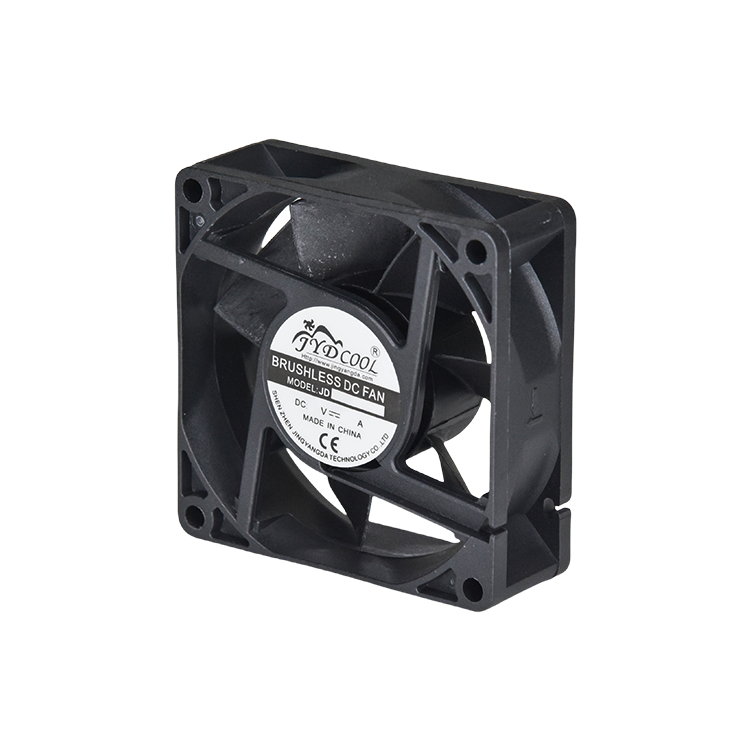

7025 Square Fan

7025 Square Fan

The 7025 square cooling fan has significant advantages. 70 x 70 x 25mm standard size is suitable for a wide range of equipment, easy to install.

  • Facebook : facebookfacebook

  • Whatsapp : whatsappwhatsapp

Product Introduction

It is powerful, can quickly discharge heat, efficient heat dissipation. When running, the noise is extremely low and will not interfere with the environment. In addition, the use of high-quality materials, long service life, good stability, is a reliable choice for equipment cooling.

Product Application

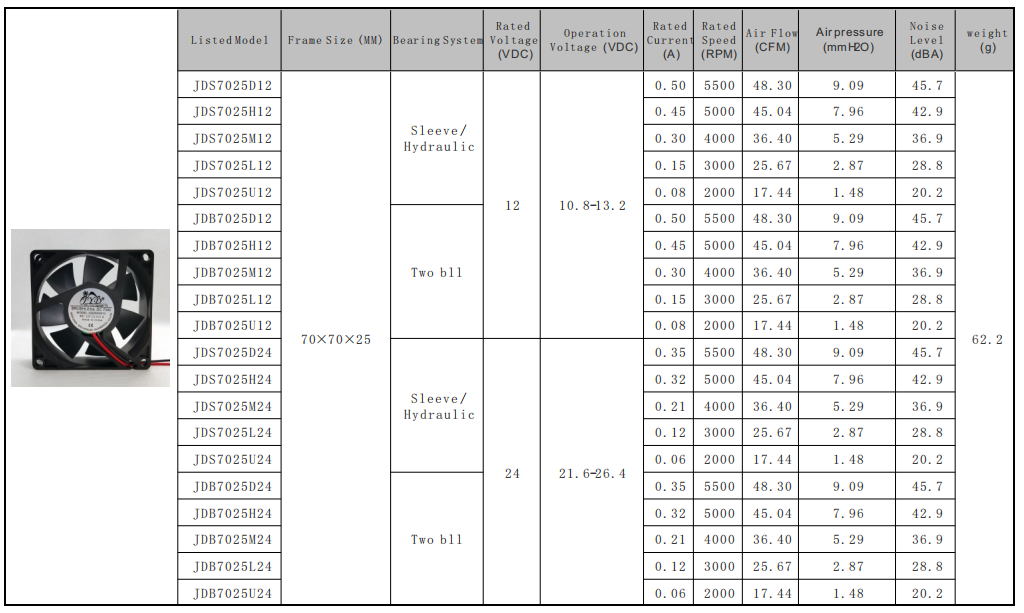

Product model

70*70*25mm

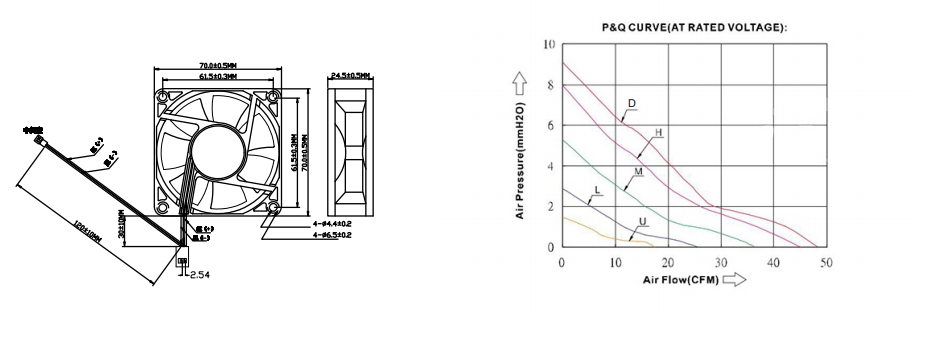

Product size



Product characteristics

Large air volume and high efficiency heat dissipation - optimized fan blade design to enhance the airflow coverage area, suitable for medium and large equipment cooling needs.

Low noise operation - balanced dynamic and static pressure to reduce noise interference during high-speed operation.

Compact and adaptable - square structure saves space and is compatible with a variety of installation scenarios (e.g. cabinets, industrial equipment).

Long life and durability - Double ball bearings or hydraulic bearings are used to support continuous high load operation.

Easy maintenance design - some models support modular disassembly, easy to clean or replace.



Free Consultation

Answer your question

frequently asked questions

  • How is the energy efficiency of a cooling fan evaluated?

    The energy efficiency of a cooling fan is typically evaluated by the ratio of airflow to power consumption, i.e., the amount of airflow generated per watt of power. Higher energy efficiency means the fan can pr...more

  • How does a cooling fan work?

    A cooling fan operates by using a motor to drive the rotation of blades, generating airflow that accelerates the movement of air and removes heat from heat sinks or radiators. The speed of the fan and the desig...more

  • What is PWM control for cooling fans?

    What is PWM control for cooling fans?

    PWM (Pulse Width Modulation) control is a technology that adjusts fan speed by modulating the pulse width of the control signal. The PWM signal varies the duty cycle of the pulses to regulate the fan's volt...more
