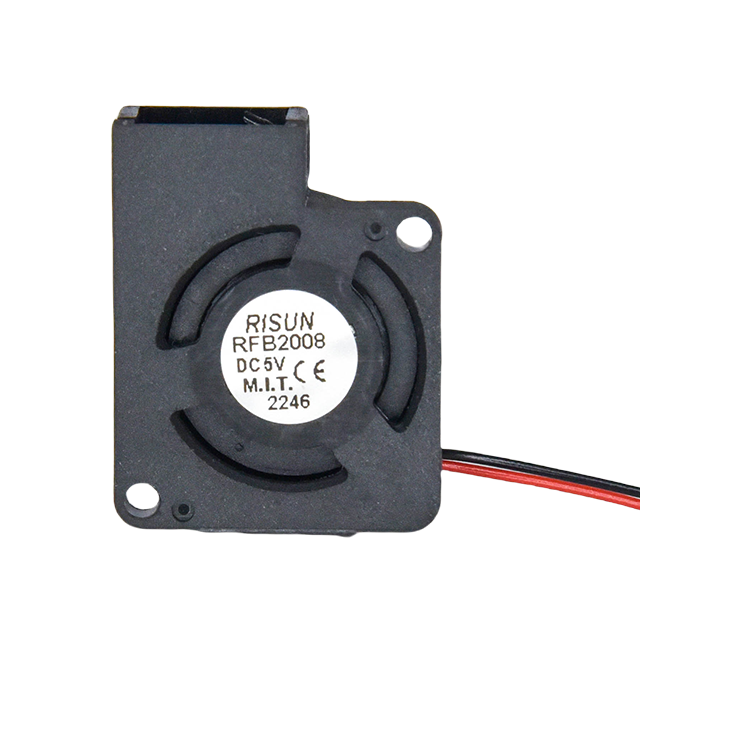

RFB2008 Miniature Fan

RFB2008 Miniature Fan

The RFB2008 miniature fan has significant advantages. With a size of only 20 x 20 x 8.5mm, it is compact and portable, and is suitable for small spaces.

  • Facebook : facebookfacebook

  • Whatsapp : whatsappwhatsapp

Product Introduction

Flexible operating voltage, 3.3V and 5V. Airflow can reach 0.61 - 0.83CFM, air pressure 2.81 - 5.51mmAg, high efficiency of heat dissipation. Low noise during operation, only 12 - 18DB, long life time up to 20,000 hours, stable and reliable.

Product Application

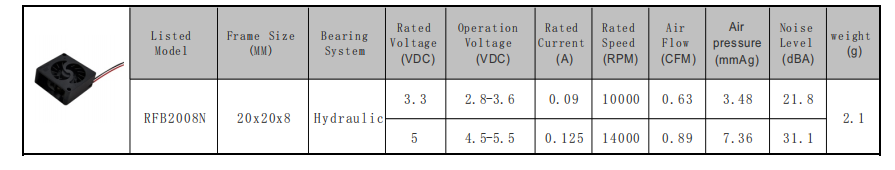

Product model

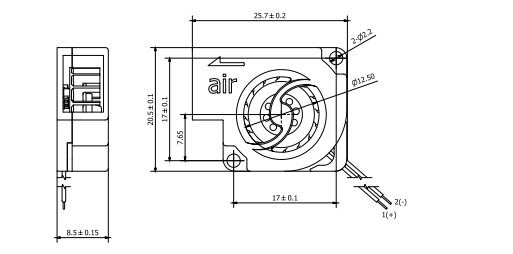

20*20*8mm

Product size

20*20*8mm20*20*8mm

Product characteristics

Ultra-thin design: Slim body, space-saving, suitable for desktop or small area.

Silent operation: low noise technology, working quietly without disturbing people.

Energy saving: low power consumption design, long time use of economic and environmental protection.

Multi-speed: meet different wind power requirements, easy to operate.

Portable and lightweight: small size and light weight, easy to move and carry.

Durable material: high quality material, long service life.

Widely used: home, office, car and other scenes available.


Free Consultation

Answer your question

frequently asked questions

  • Does the installation direction of a cooling fan affect its cooling performance?

    Yes, the installation direction of a cooling fan significantly affects its cooling performance. Typically, a fan can be installed on the intake or exhaust side of a heat sink. When installed on the intake side,...more

  • How does a cooling fan perform in high-temperature environments?

    The performance of a cooling fan in high-temperature environments can be affected. High temperatures can increase the temperature of the fan motor and bearings, raising the risk of wear and failure. Additionall...more

  • Innovative Applications of DC Fans in Medical Equipment

    Innovative Applications of DC Fans in Medical Equipment

    DC fans are used in various medical equipment to ensure proper cooling, air circulation, and temperature control. Here are some innovative applications of DC fans in medical equipment:Medical Imaging Equipment:...more
