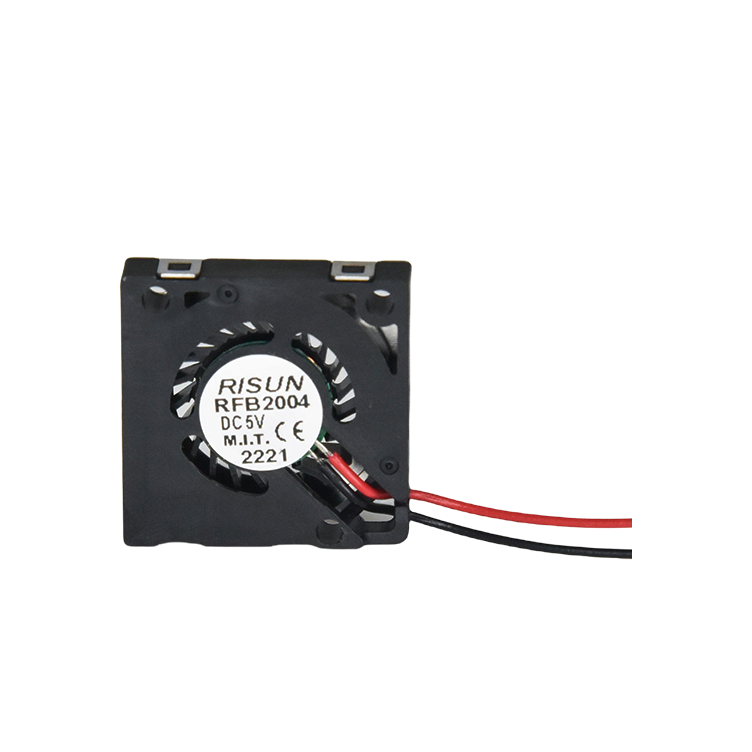

RFB2004 Miniature Fan

RFB2004 Miniature Fan

The RFB2004 miniature fan has outstanding advantages. Compact size, only 20 x 20 x 4mm, easy to adapt to the narrow space.

  • Facebook : facebookfacebook

  • Whatsapp : whatsappwhatsapp

Product Introduction

Adopting axial flow design, it can guide the airflow efficiently and take away the heat quickly, with remarkable heat dissipation effect. Low operating noise, not disturbing. Brushless motor ensures its stability and long life, providing continuous air supply for the stable operation of the equipment.

Product Application

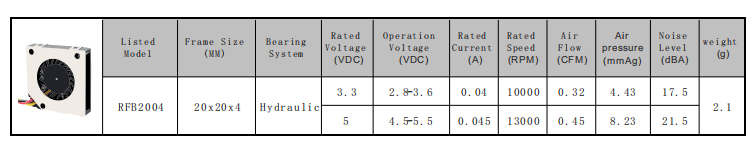

Product model

20*20*4mm

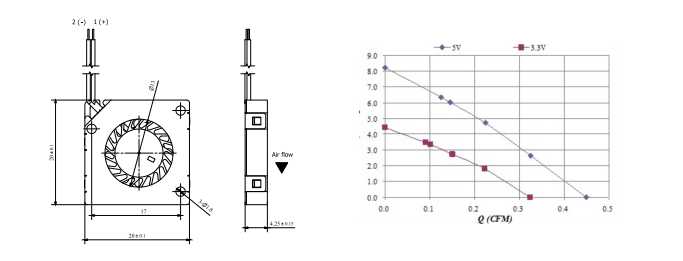

Product size

20*20*4mm

20*20*4mm


Product characteristics

Ultra-thin design: only 20mm thick, space-saving, suitable for compact equipment.

Highly efficient heat dissipation: Optimized air duct design maintains high airflow at low speeds, balancing performance and noise.

Long-life bearings: Dual ball or hydraulic bearings for improved durability and long-term continuous operation.

Wide Voltage Compatibility: Supports a wide range of voltages such as 5V/12V, adapting to different application scenarios.

Easy integration: Standardized interfaces and mounting holes simplify the assembly process.

Free Consultation

Answer your question

frequently asked questions

  • How is the noise of a cooling fan generated?

    The noise of a cooling fan primarily comes from airflow, mechanical vibration, and motor operation. Airflow noise is caused by turbulence and vortices generated when the blades rotate and interact with the air....more

  • How does a cooling fan work?

    A cooling fan operates by using a motor to drive the rotation of blades, generating airflow that accelerates the movement of air and removes heat from heat sinks or radiators. The speed of the fan and the desig...more

  • Applications of DC Fans in Industrial Cooling Systems

    Applications of DC Fans in Industrial Cooling Systems

    DC fans are widely used in industrial cooling systems due to their efficiency, controllability, and compact design. Here are some key applications:1.Electronics CoolingServers and Data Centers:DC fans are used ...more
